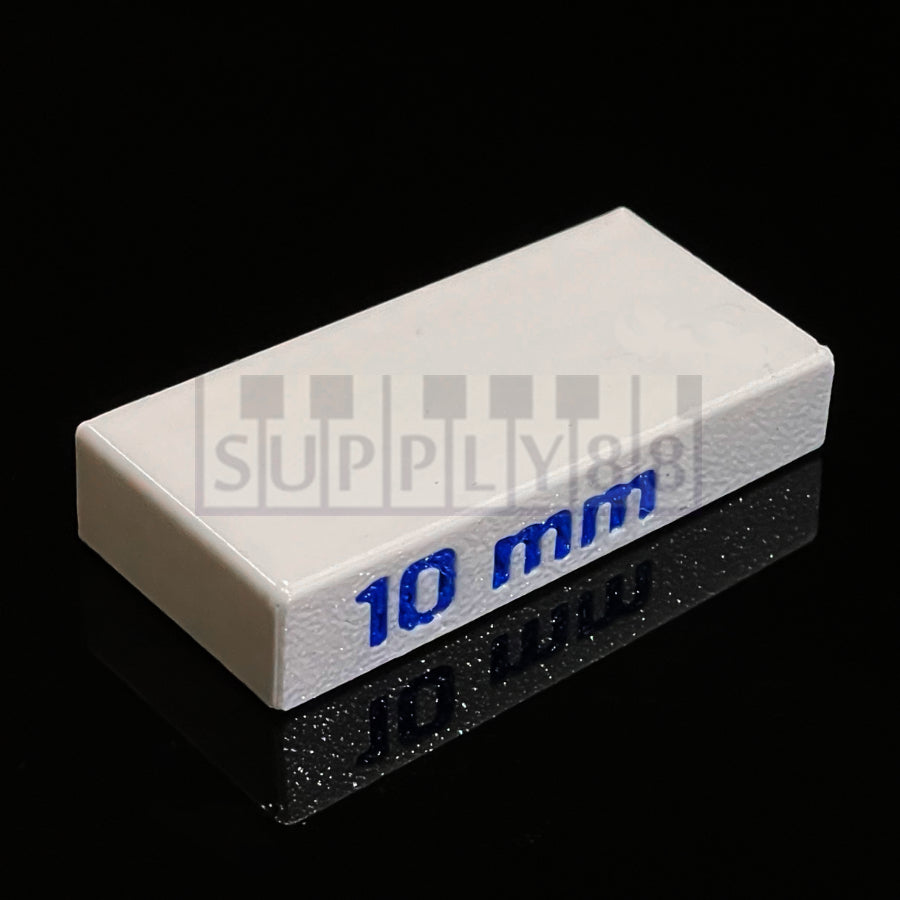

The Supply88 Key Dip Block has the dimension clearly marked on the right (treble) side of the block.

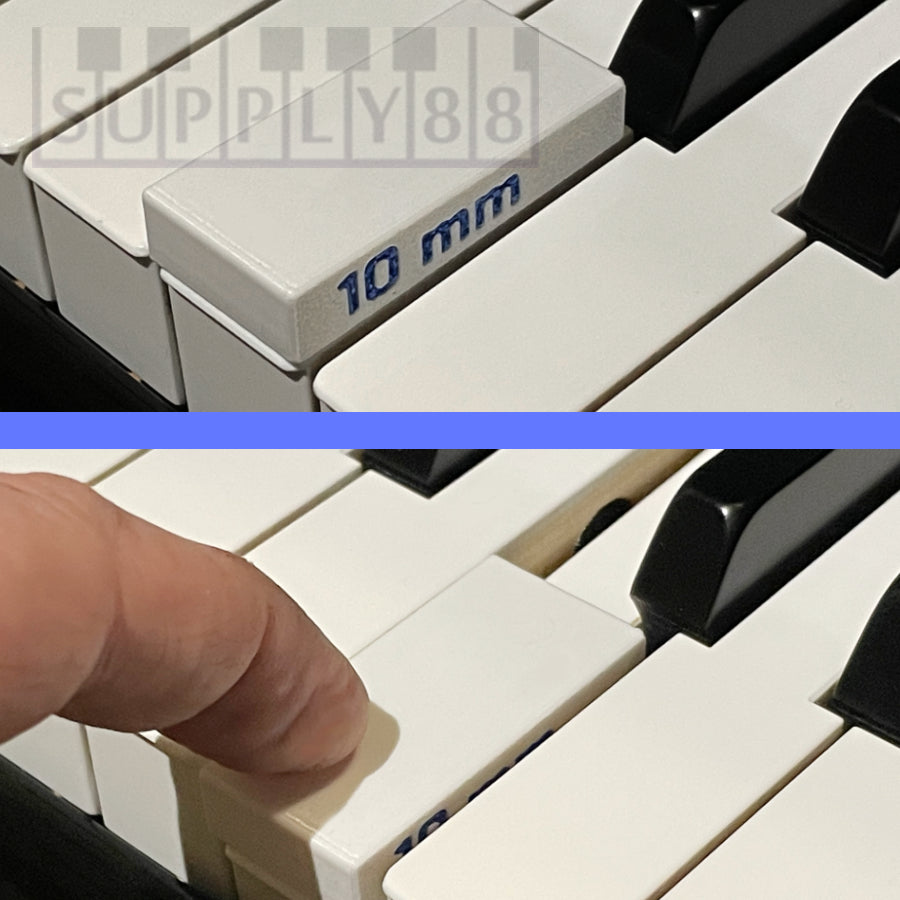

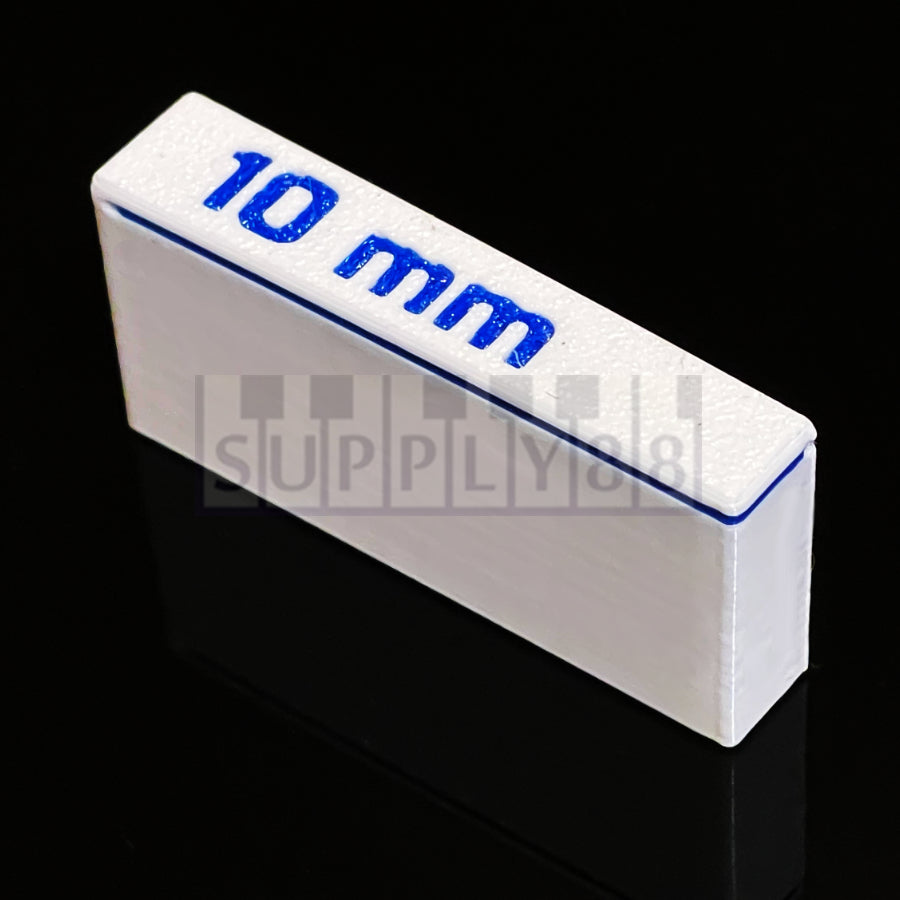

Colored lines on the bottom and rear help to quickly orient the block (these lines should not be visible when using the dip block).
We can produce key dip blocks to any dimension, so if you would like something other than 10mm, drop us a note and we'll produce it for you.

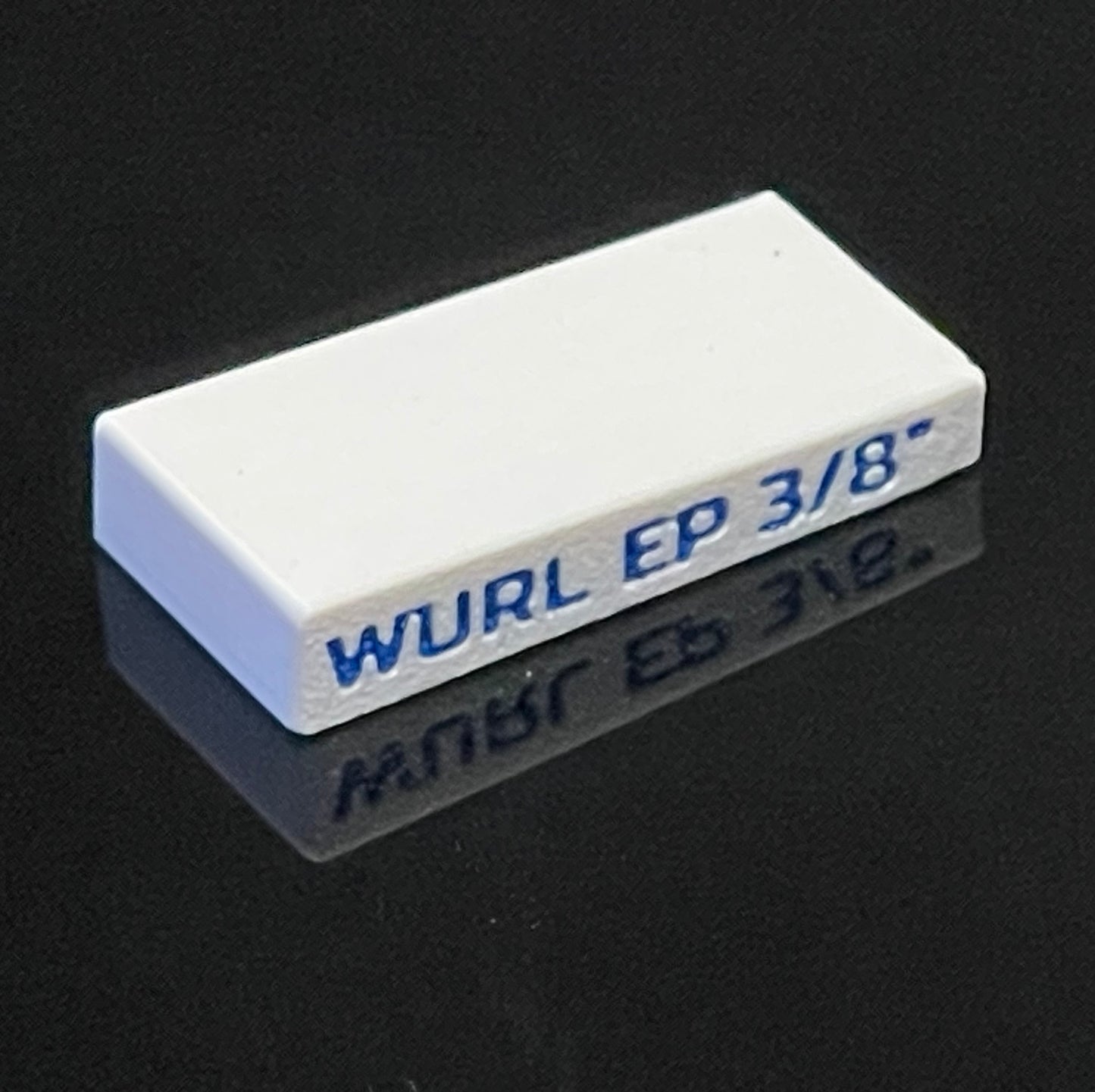

Example: We made a special 3/8” key dip block for regulating Wurlitzer electric pianos, which have a very short distance to the balance point compared to a grand acoustic piano. (The taper angle is more pronounced so the top of the block is flush with the adjacent key tops when the key is down.)
